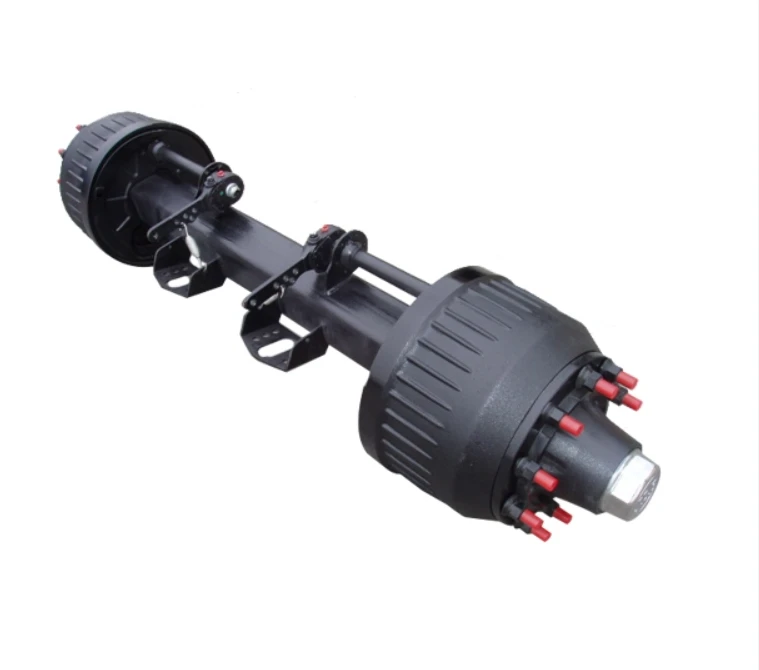

Trailer Fuwa Axle American Type
The axle of trailer is one of the important components of trailer, and the quality and material of axle are directly related to the overall performance and service life of trailer. At present, there are three common trailer axle materials: steel, aluminum alloy and titanium alloy.
Features
Products Description
Characteristics and advantages
High-strength materials: The axles of Fuhua brand American semi-trailer are usually made of high-quality materials such as high-strength alloy steel to ensure that the axles can still maintain good performance and durability in harsh working environments.
Precision machining: The machining process of the axle follows high-precision standards to ensure that the geometric size and shape accuracy of each component meet the design requirements, thereby improving the driving stability and safety of the vehicle.
Strong bearing capacity: the axle design is reasonable and can withstand large loads to meet the needs of heavy transport vehicles.
Easy maintenance: The structure of the axle is designed to facilitate daily maintenance and maintenance, reducing the cost of using the vehicle.
| Axle type | Max capacity(T) | Wheelbase (mm) |
Brake size (mm) |
Center Distance of Spring Seat(mm) | Axle tube (mm) |
GM Center Distance of Brake Chamber(mm) |
| SX13T01 | 13 | 1840 | 420*180 | ≥930 | 150*150*12 | 390 |
| SX13T02 | 13 | 1840 | 420*180 | ≥930 | 150*150*12 | 390 |
| SX13T03 | 13 | 1840 | 420*180 | ≥930 | 150*150*12 | 390 |
| SX13T04 | 13 | 1840 | 420*220 | ≥930 | 150*150*12 | 350 |
| SX16T01 | 16 | 1850 | 420*220 | ≥950 | 150*150*14 | 360 |
| Wheel fixing | Total length (mm) | Recommended Rim | Weight(kg) | Bearing | ||
| studs | Distribution circles(mm) | Hole diameter(mm) | ||||
| 10-M22*1.5 ISO | 335 | 281 | 2185 | 7.50V-20 | 340 | 518445/10 518445/10 |
| 10-M22*1.5 ISO | 285.75 | 221 | 2185 | 7.50V-20 | 340 | 518445/10 518445/10 |
| 10*7/8-11 BSF | 335 | 281 | 2185 | 7.50V-20 | 340 | 518445/10 518445/10 |
| 10-M22*1.5 ISO | 335 | 281 | 2185 | 7.50V-20 | 385 | 518445/10 518445/10 |
| 10-M22*1.5 ISO | 335 | 281 | 2205 | 8.0V-20 | 410 | 518445/10 220149/10 |
Advantages:
1. High quality guaranteed: we have very strict quality control system to make sure every production process under well conditions,and all the products will be carefully checked one by one to avoid any defects before shipping.
2. Fast delivery: as an actual and professional manufacturer,we have the confidence to arrange your order at the shortest time! we can always promise a rapid delivery.
3. Most competitive price : most favorable price with high quality products guaranteed!Our Company
