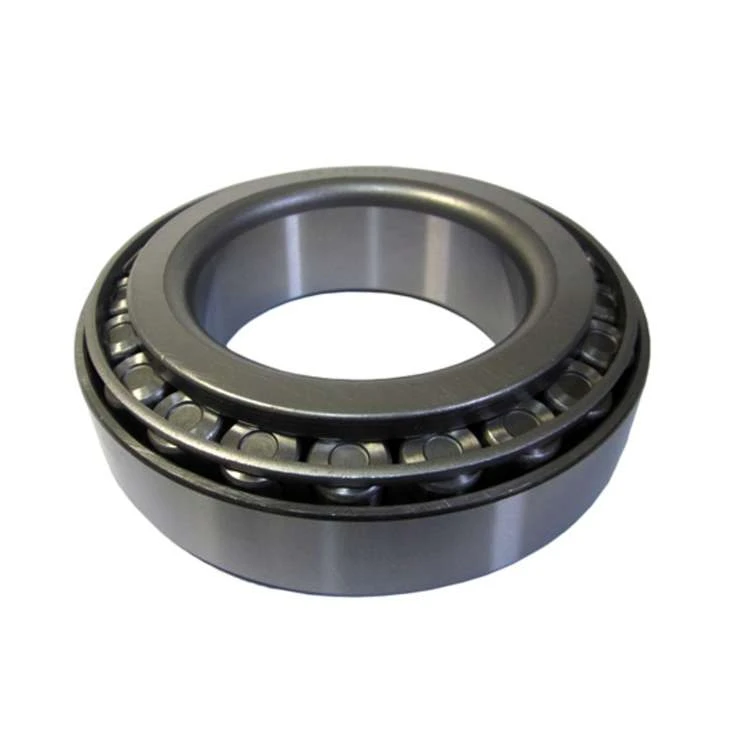

Bearing 518445
ensures optimum rolling characteristics. The play-free bearing mounting makes the tapered roller bearing particularly suitable for the highest precision and accuracy requirements.
Features
Products Description
Tapered roller bearings can be subjected to radial and axial loads. They are suited to high load conditions. The tapered form of the rolling elements ensures optimum rolling characteristics. The play-free bearing mounting makes the tapered roller bearing particularly suitable for the highest precision and accuracy requirements.
High quality chrome steel Gcr15
High carbon chromium steel (GCr15)
Composition: About 1.0% carbon, 1.5% chromium, manganese, silicon and other alloying elements.
Features: High hardness (HRC 58-62), strong wear resistance, suitable for most industrial scenarios.
Heat treatment: need to undergo quenching + low temperature tempering to ensure core toughness and surface hardness.
Stainless steel (e.g. 440C/AISI 420)
Composition: Carbon 0.95-1.2%, chromium 16-18% (rust prevention key).
Features: Strong corrosion resistance, suitable for food, chemical or Marine environments, but the cost is high.
Other options:
Ceramic ball (Si3N4) : Extreme high speed or high temperature environment, but expensive.
Special coatings: such as DLC (diamond-like carbon) coatings to reduce friction.
Fine process flow
1. Forging and machining
Forging blank: Using cold heading or hot forging to ensure continuous metal flow line (improve fatigue life).
Precision turning: CNC lathe machining shaft ring/seat ring, dimensional tolerance control within ±0.01mm.
2. Heat treatment
Quenching: Heating to about 850 ° C (GCr15), oil quenching transforms the tissue into martensite.
Tempering: 160-200℃ low temperature tempering, eliminate stress and stabilize the size.
Additional processing:
Cryogenic treatment (below -70 ° C) : improve dimensional stability and reduce residual austenite.
Ion nitriding: surface hardening to HV 1000 or more, extended life.
3. Grinding and superfinishing
Rough grinding/fine grinding: Using CNC grinding machine to process raceway, surface roughness up to Ra 0.2μm.
Super finishing: Whetstone polishing raceway, further reduce roughness (Ra 0.05μm), reduce vibration noise.
Good bearing performance
Cage assembly: The robot automatically presses the steel ball to ensure even distribution.
100% test items:
Clearance (axial clearance is usually 0.03-0.08mm).
Rotation flexibility (no stuck).
Noise testing (≤45 dB for high-end applications).
Packing
Rust-proof paper + plastic film + corrugated box, in line with export moisture-proof and shock-proof standards.
Bearing 4515 Data sheet
|
Product name |
518445/10 tapered roller bearing |
|
Brand |
HGF |
|
Inner diameter(mm) |
88.9 |
|
Outer diameter(mm) |
152.4 |
|
Width(mm) |
39.688 |
|
Number of row |
single row |
|
Precision rate |
P0,P6,P4,P5 |
|
Material |
Chrome steel/Stainless steel |
|
Package |
Original box package |
Company introdution
Cangzhou Saixin Trading Co., Ltd. is located in the trailer parts distribution base in North China.It has developed into a new trailer suspension comprehensive enterprise integrating consultation,design,production and sales
the company is mainly engaged in American suspension, German suspension, Fuwa BPW brake shoes, brake drums, wheel hubs and other products. It has a perfect sales network and after-sales service system,and is deeply loved by customers and friends
adhering to the enterprise spirit of "honesty, trustworthiness, innovation and development", the company continues to deeply cultivate the trailer suspension industry,do a good job in products and services with the spirit of craftsman,and win the recognition of more and more customers and markets with excellent products and services.
Products Description
① Products according to the provisions of the national standard and customer requirements qualified factory, bearing life to meet international standards and customer requirements.
