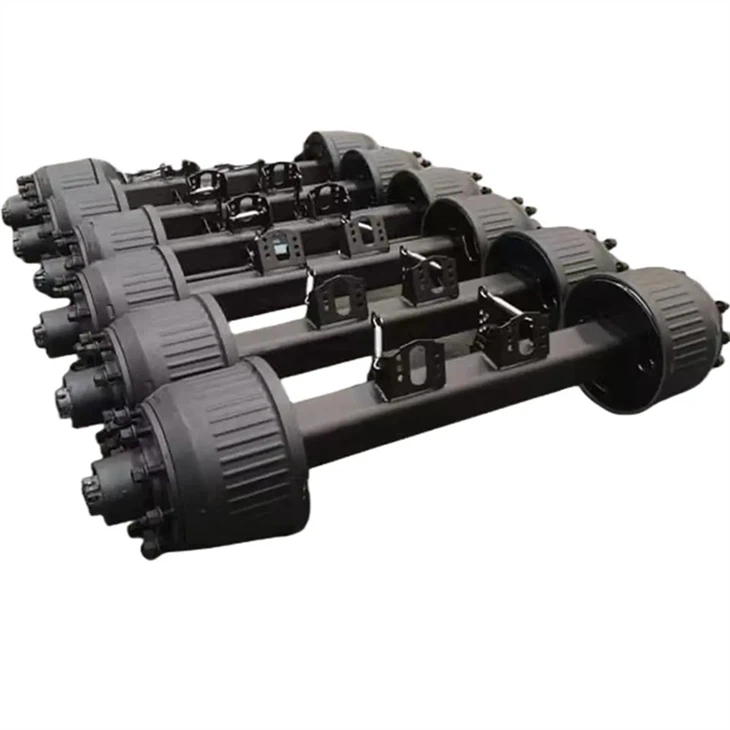

Standard Germany Single Axle
Product information The trailer axle plays a key role in supporting and distributing the load on the trailer, ensuring its smooth operation by transmitting various external forces and reaction forces. The axle, which consists of a beam assembly, a brake assembly and a hub assembly, is an...
Features
Product information
The trailer axle plays a key role in supporting and distributing the load on the trailer, ensuring its smooth operation by transmitting various external forces and reaction forces. The axle, which consists of a beam assembly, a brake assembly and a hub assembly, is an essential component of the functionality and safety of all trailer types.
|
Axle type |
Max capacity(T) |
Wheelbase (mm) |
Brake size (mm) |
Center Distance of Spring Seat(mm) |
Axle tube (mm) |
GM Center Distance of Brake Chamber(mm) |
|
SX12 |
12 |
1840 |
420*180 |
≥980 |
150 |
423 |
|
SX14 |
14 |
1840 |
420*200 |
≥900 |
150 |
356 |
|
SX16 |
16 |
1850 |
420*200 |
≥900 |
150 |
360 |
|
Wheel fixing |
Total length (mm) |
Recommended Rim |
Weight(kg) |
Bearing |
||
|
studs |
Distribution circles(mm) |
Hole diameter(mm) |
||||
|
10-M22*1.5 ISO |
335 |
280.8 |
2144 |
7.5V-20 |
360 |
33213 33118 |
|
10-M22*1.5 ISO |
335 |
280.8 |
2198 |
8.0V-20 |
406 |
33215 33219 |
|
10-M22*1.5 ISO |
335 |
280.8 |
2165 |
8.5V-20 |
440 |
33214 32222 |
Basic characteristics
Material and process: low alloy steel shaft beam with special heat treatment is used, which has good comprehensive performance, strong bearing capacity and low dead weight. At the same time, the high-quality alloy solid insert spindles undergo integral heat treatment to provide superior fatigue resistance.
Brake system: High performance non-asbestos brake lining for extended service life and easy ABS installation. Some products may also be equipped with ABS and T30 brake chambers for improved braking performance and safety.
Sealing and lubrication: New tight fit hubcaps and O-rings improve sealing performance.
Application field
Standard Germany Single Axle is widely used in a variety of trailers, trailers and heavy transport vehicles, such as freight trailers, refrigerated trucks, dangerous goods transport vehicles, etc. Their high load carrying capacity and good braking performance ensure the stability and safety of the vehicle under various working conditions.
advantage
Performance advantage
1. Strong carrying capacity: According to demand, Standard Germany Single Axle can provide different carrying capacity, such as 12 tons, 14 tons, 16 tons, etc., to meet the needs of different vehicles. Its strong carrying capacity allows the vehicle to transport heavier cargo, improving transportation efficiency.
2. Excellent braking performance: Equipped with high-performance non-asbestos brake lining, providing superior braking performance to ensure the safety and stability of the vehicle under various working conditions. Some products are also equipped with ABS and T30 brake chambers, further improving braking performance and reaction speed.
3. Long life and low maintenance: The new tight fit hubcap and O-ring design improves the sealing performance and reduces the loss of lubricating oil and the intrusion of external impurities. At the same time, the long-term lubrication provided by the high-quality grease extends the no-maintenance time and reduces the maintenance cost.
Security advantage
1. Strong fatigue resistance: special heat treatment of low alloy steel shaft beams and high-quality alloy solid insert spindle has superior fatigue resistance, can withstand long time and high strength use without fracture or deformation.
2. Perfect braking system: The application of efficient braking system and ABS system improves the braking performance and safety of vehicles under different road conditions and speeds.
Packing and delivery
We ship low slab semitrailers in bulk, in containers or on a ro-ro basis. Our factory and shipping agent long-term cooperation, can provide you with the lowest freight.
