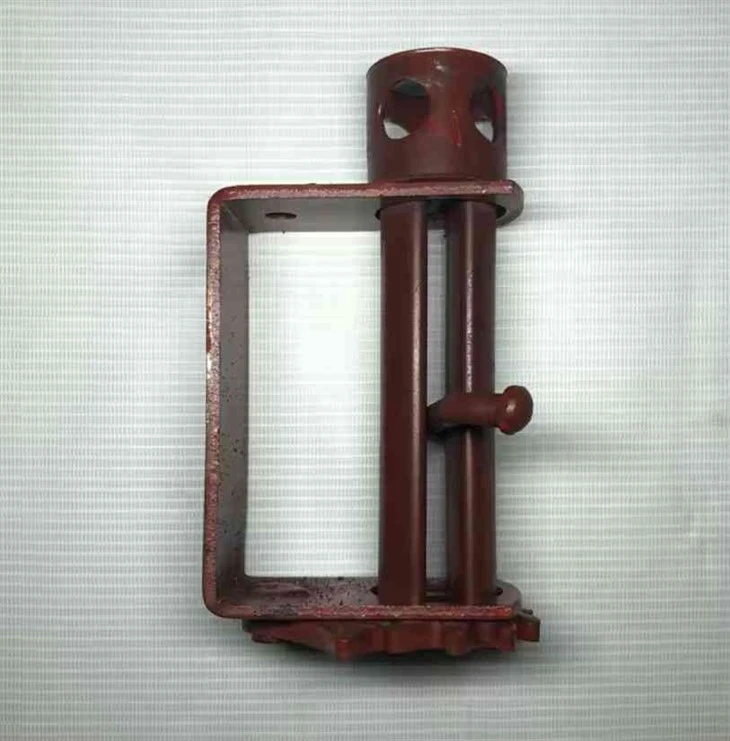

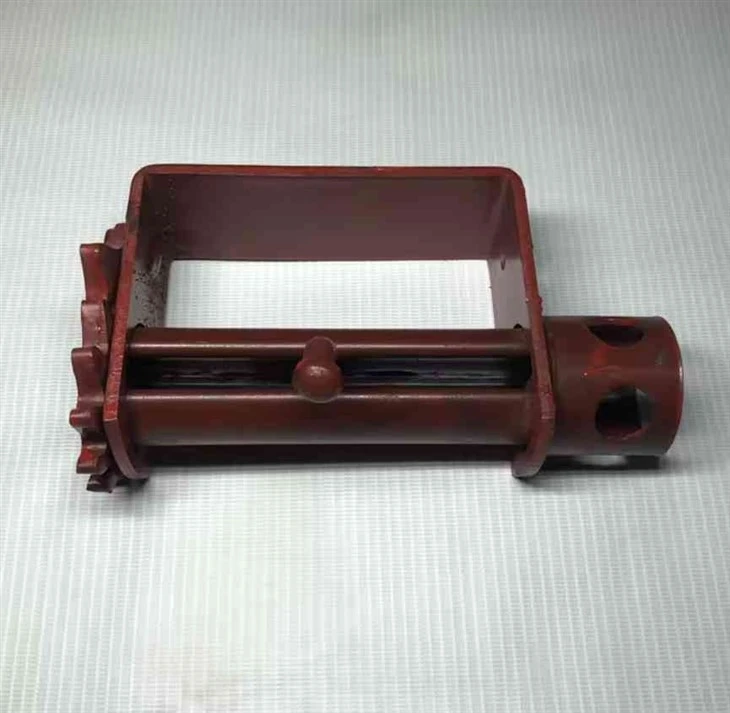

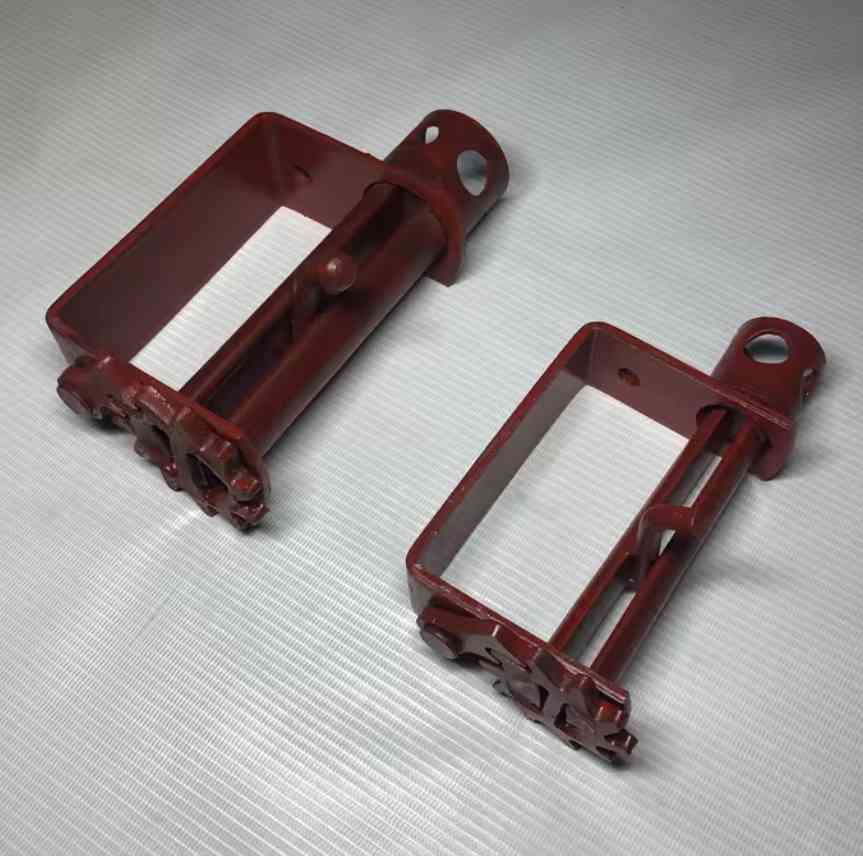

Semi Rope Tightener

Semi rope tightener is a lashing tool commonly used in the freight and logistics industry for securing goods, loading and transportation.

Semi-automatic operation: fast tensioning by handle or lever mechanism, automatic locking to prevent rebound.

High load capacity: ADAPTS to high intensity requirements in freight transport (e.g. trucks, containers, heavy equipment bundling).

Durability: The material is mostly metal (such as galvanized steel, aluminum alloy), corrosion resistance and wear resistance.

Tight bite



Technical points:

High precision gear/ratchet design: CNC machining of hardened steel gear, tooth pitch error ≤0.1mm, to ensure that there is no gap with the rope or ribbon bite, prevent sliding.

Dynamic pressure test: repeated tension-release test under rated load (such as 30kN), the deformation of the occlusal surface < 0.5%, to ensure that long-term use is not loose.

Surface treatment: The tooth surface is carburized and quenched or chrome plating process, the hardness reaches HRC 55-60, and the wear resistance is increased by more than 3 times.

Application advantages:

Suitable for bumpy road conditions, to avoid goods due to vibration caused by loose.

Suitable for rough rope surface (such as old nylon rope, with mud webbing), still can maintain high friction.

Integrated forming



Integral die casting (aluminum alloy models) : Through high pressure casting (such as Dynacast process) to achieve the main frame without welds, reduce stress concentration points, weight reduction of 20% strength unchanged.

Modular design: Core components (ratchet, handle, lock) are embedded in the main body after pre-assembly, reducing the site failure rate.

Composite applications: steel-nylon hybrid structures (e.g., gears + engineering plastic housing) balance strength with corrosion resistance.

Quality verification:

Internal pores/cracks detected by X-ray inspection (according to ASTM E1444).

Vibration table simulated transport test (ISO 13355) to verify structural integrity.

Fineness of welding



Process standard:

Laser welding (stainless steel models) : weld width ≤1.2mm, uniform penetration, no splash (in accordance with EN ISO 13919-1 Class B standard).

Robot TIG welding (key bearing parts) : After welding, polishing + passivation treatment, surface roughness Ra≤3.2μm, to avoid cutting the rope.

Weld inspection: 100% penetration inspection (PT) or ultrasonic inspection (UT) to ensure that there is no virtual welding and porosity.

User value:

The weld is smooth and burr free, extending the service life of the strap.

High welding strength (tensile strength ≥ 90% of base metal), suitable for high dynamic load scenarios.

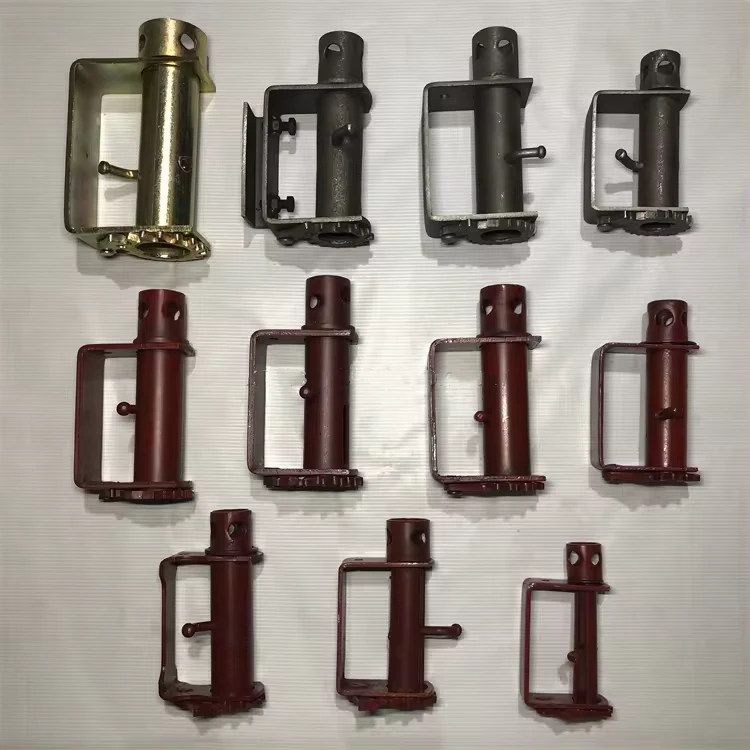

A variety of specifications



Various specifications, sufficient materials, smooth surface, not easy to scrape hands.



Support non-standard aperture, handle length, brand LOGO engraving and other personalized needs.

Structure and working principle:

1.Webbing: Truck rope tighteners usually consist of a strong webbing, which is usually made of high-strength polyester fiber or nylon with excellent tensile properties and durability.

2.Rope tensioner mechanism: The rope tensioner mechanism usually consists of a handle, one or more ropes and a twisting device. Operated by the handle, the rope is tightened and secured to ensure the cargo is securely fastened to the vehicle.

3.Hook or grapple: One end of the rope tightener is usually equipped with a hook or grapple for attachment to the vehicle's rack, fender, or other fixed point.

4.Adjustment device: Some truck rope tighteners are equipped with an adjustment device that can adjust the length of the rope as needed to accommodate different sizes and shapes of cargo.

Instructions:


1.Securing the cargo: Place the cargo on the vehicle and secure it in the desired location using truck rope tighteners. Make sure the rope is securely attached to the cargo and pull the rope tightly.

2.Operate the rope tensioner: Operate the rope tensioner through the handle and tighten the rope until the cargo is fastened to the vehicle and remains stable. Make sure the rope is tight and has no chance of loosening or coming loose.

3.Inspection and adjustment: During loading and transportation, regularly check the tightening status of the truck's rope tightener and make adjustments as necessary to ensure that the cargo remains safe and stable.

Advantages and applications:


1.Convenient and fast: The truck rope tightener is simple to operate and can quickly secure goods and save loading time.

2.Flexibility: Suitable for cargo of various shapes and sizes, the length and tension of the rope can be adjusted as needed.

3.Safe and reliable: The high-strength straps and mechanism design ensure the firmness and stability of the fixation and ensure the safe transportation of goods.

4.Widely used: Truck rope tighteners are widely used in trucks, trailers, container transportation and other occasions, and are suitable for fixing and transporting various goods.
