Clutch plate For Trailer Parts
Products Description Packing&Shipping Company profile Cangzhou Saixin Trading Co., Ltd. is located in the trailer parts distribution base in North China. Trailer accessories are important equipment to ensure the safety of trailer transportation and are widely used. They are diverse and...
Features
Products Description

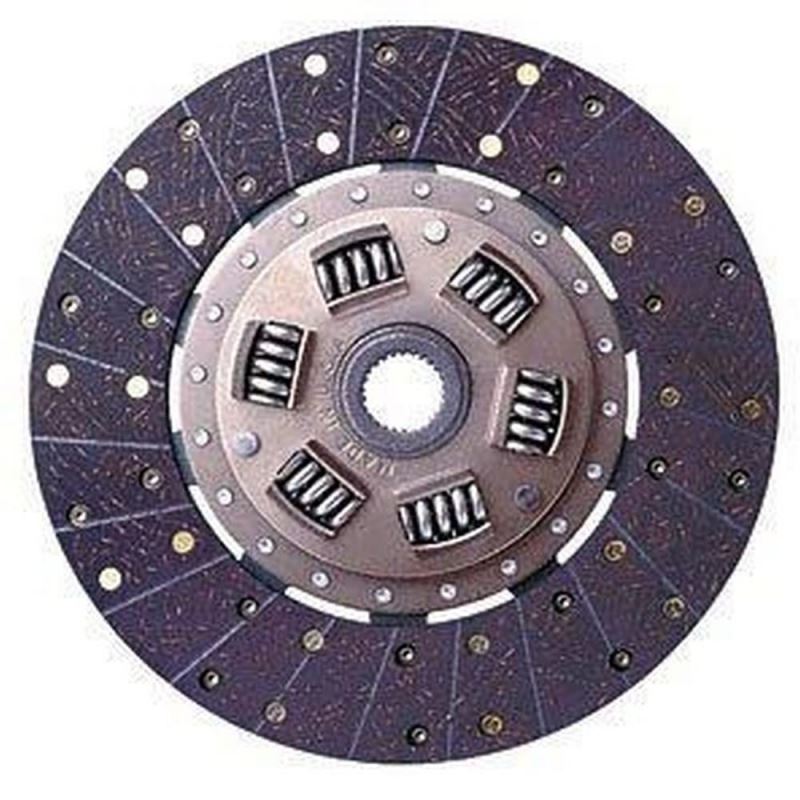

the Clutch plate For Trailer Parts is the core component of the trailer drive system, which is used to transfer and cut off engine power to ensure a smooth start, shift and stop of the trailer. Suitable for tractor-trailer, freight trailer, engineering trailer, etc.
|
Parameter |
Typical values/ranges |
Description |
|
Outer diameter |
200mm–400mm |
designed according to trailer torque requirements |
|
Inside diameter |
100mm–200mm |
matching transmission input shaft spline |
|
Thickness |
8mm–15mm |
including friction material thickness |
|
orque capacity |
300N·m–1500N·m |
Heavy trailers require higher torque |
|
Operating temperature |
-30°C至+350°C |
High temperature materials (such as ceramics) better heat resistance |
material
Friction material:
Organic materials (resin + fiber) : low noise, suitable for light trailers.
Semi-metal (metal fiber + resin) : increased wear resistance.
Ceramic (ceramic particles + copper fiber) : high temperature resistant for heavy duty trailers.
Sintered metal (copper/iron base) : extreme load scenarios.
Core components:
Steel frame (high strength alloy steel).
Damping spring (reduces transmission shock).
Application scenario
Light trailer: organic or semi-metal clutch plate (e.g. RV, small freight).
Heavy-duty trailers: ceramic or sintered metal sheets (e.g. construction machinery trailers, container transport).
High frequency operation: wet clutch plate (e.g. port tractor).
Manufacturing process
Stamping: laser cutting steel skeleton.
Friction material bonding: high temperature and high pressure bonding or riveting.
Heat treatment: Increase the hardness of metal parts.
Dynamic balance test: Ensure high-speed rotation stability.
Surface treatment: anti-rust coating or phosphating treatment.
