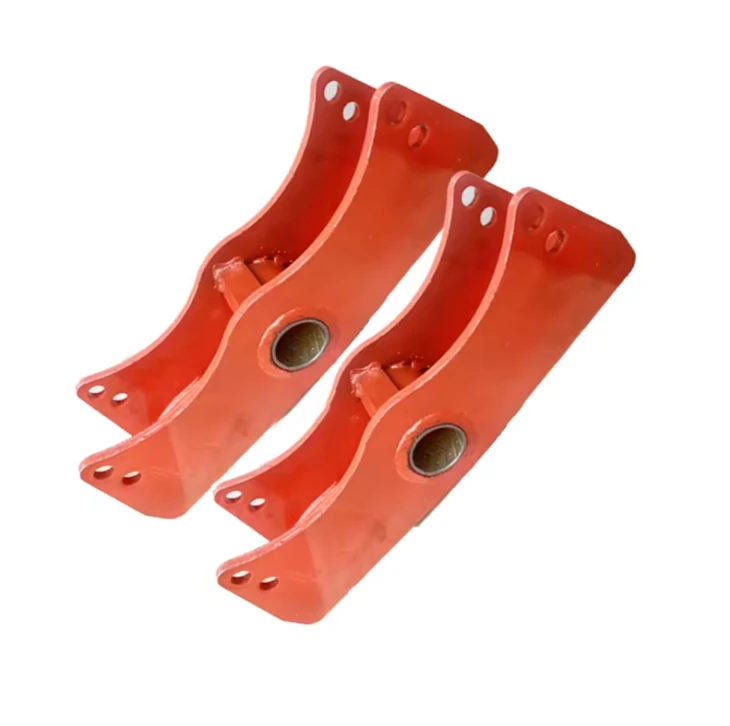

Truck parts Balance Beam
Truck parts Balance Beamis a key component in the truck suspension system, mainly used to reduce the body in cornering or bumpy road conditions roll and vibration, improve vehicle stability and safet
Features
Truck parts Balance Beam Description
Truck parts Balance Beamis a key component in the truck suspension system, mainly used to reduce the body in cornering or bumpy road conditions roll and vibration, improve vehicle stability and safet
The balance beam will tilt so that the rear end of the first axle is lifted upwards and the front end of the second axle will be forced downward. Consequently both pairs of axle wheels will be compelled to contact the ground and equally share out the static laden weight imposed on the whole axle bogie.
Truck parts Balance Beam Data Sheet
|
Product Name |
balance beam |
|
Application |
Automotive Parts |
|
OE Number |
General |
|
Material |
STEEL |
|
Quality |
High Quality |
|
Payment |
TT, Bank Account (Cash) |
|
Packing |
Carton , Custom Packaging |
|
Quality |
High-Quality |
|
MOQ |
50 pcs |
|
Delivery Time |
15 days for production items |
|
Warranty |
3 Months |
Function & Structure
Function
By rigidly connecting the left and right wheels, balance the forces on both sides, reduce body distortion and improve handling.
Structure
Usually U-shaped or straight rod-shaped metal parts, both ends are connected to the wheel suspension by connecting rods, and the middle is fixed on the frame or chassis.
Application scenario
heavy trucks, engineering trucks, freight trucks and other high-load vehicles.
Material
Spring steel (such as 60Si2MnA) : high elasticity, fatigue resistance, suitable for repeated deformation.
Alloy steel (such as 42CrMo) : high strength, wear resistance, suitable for heavy duty environments.
Stainless steel (e.g. 304/316) : Corrosion resistant, used in high humidity or salt spray environments.
Surface treatment: galvanized, phosphating, spray or electrophoretic coating to enhance rust prevention.
Characteristics
High rigidity
ensures the dynamic stability of the vehicle.
Lightweight design
part adopts hollow tube structure to reduce self-weight.
Fatigue resistance
adapt to long-term high frequency vibration.
Easy installation
standardized interface design, compatible with mainstream models.
Apply
1.Vehicle type:
Heavy trucks, trailers, construction machinery (e.g. excavators, loaders).
2.Scene:
rugged mountain road, construction site, long-distance transportation and other high-intensity conditions.
Process and production process
1.Raw material cutting: cutting billet or steel pipe to size.
2.Thermoforming: After heating, it is formed by forging or bending through a die.
3.Heat treatment: quenching + tempering to improve hardness and toughness.
4.Machining: drilling, turning, processing of connection parts.
5.Surface treatment: spray/electroplating anti-rust layer.
Quality inspection
1.Mechanical test
tensile strength, fatigue life.
2.Size check
coordinate measuring instrument detection accuracy.
3.Salt spray test
verification of corrosion resistance.
4.Assembly and packaging
bushing, connecting rod, shock-proof packaging.
Truck parts Balance Beam Function
The trailer balance beam is located in the middle of the two sets of front and rear leaf springs. Its working principle is like a "seesaw". It not only serves as a fixed point for the steel plate floating frame, but also balances the load-bearing capacity between the axles, allowing the vehicle to travel to When the road surface is undulating, the forces on each axle are more evenly distributed.
Generally, the balance beam is not easy to be damaged. In many cases, the load capacity is too large, which causes the steel plate floating frame and the top of the balance beam to wear too seriously. All the force is exerted on the shaft pin, and this shaft pin is like a "traction pin." " has the same function, combining the steel plate bracket and the balance beam.
Transportation Service
Every aspect of our packaging process is meticulously designed to protect your goods throughout their journey. From the strength of our wooden crates to the resilience of plastic crates, cartons, or pallets, each package is fortified against potential damage. Waterproof film adds an extra layer of protection, safeguarding your cargo from moisture during transportation. We also offer customizable labeling and shipping marks to ensure seamless identification and handling. When it comes to transportation, choose from express, air, sea, car, or rail options, with the flexibility to work with our in-house freight forwarder or your preferred provider. Our export capabilities extend across multiple ports in China, including Qingdao, Ningbo, Lianyungang, Tianjin, Quanzhou, Xiamen, and Guangzhou, catering to diverse delivery requirements with ease.
FAQ
·1.How to contact you?
· A:There're links on the right side. Click to inquire.
· 2.Will it fit ?
·A:Of course. We will make the connecting dimensions the same with your machine's, so it will fit perfectly.
.3.How long is the production?
A:It's up to your actual demand, such as model number and quantity,etc.
· 4.What's the packing?
· A:Every product will be packed with pallet to protect it from impact damage.
· 5.Where can you deliver to?
· A:We can deliver to most of main ports in multiple countries.
· 6. How long will the delivery cost?
· A: It depends on the destination port. Usually it's 35 to 40 days for both production and delivery.
· 7.What's the guarantee?
· A:Three months after receiving the goods.
· 8.What's the payment?
· A:Bank is acceptable, and it's also negotiable if you prefer other ways (such as alipay).
· 9.Could you provide technical support?
· A:Yes. 24-hours online support.
