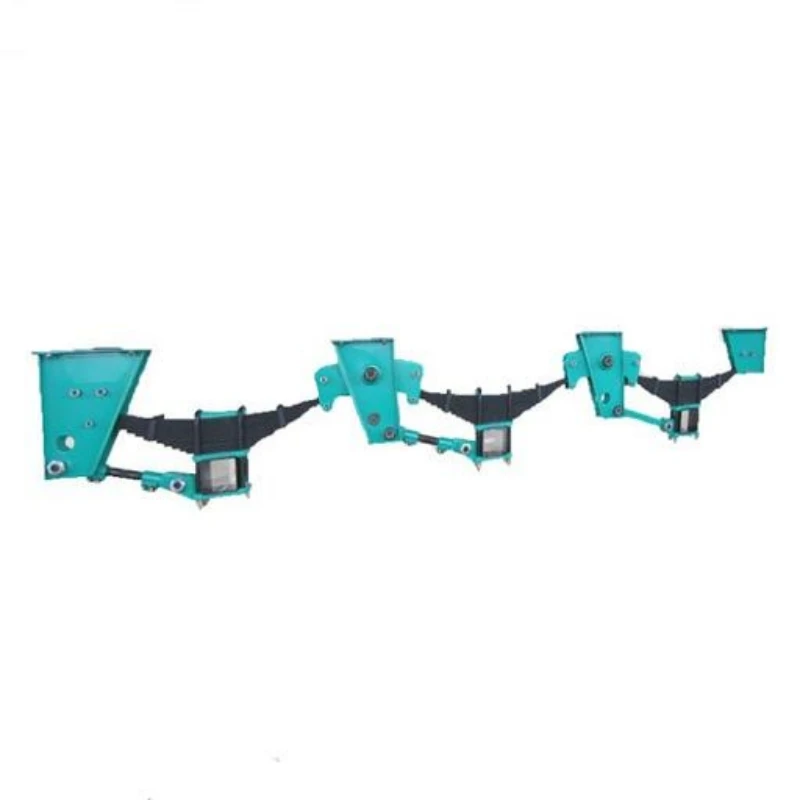

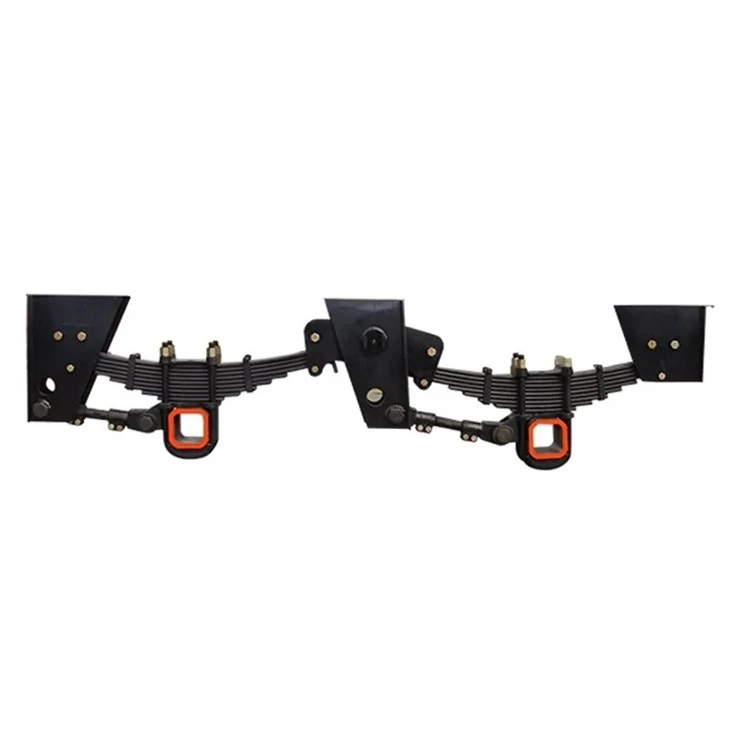

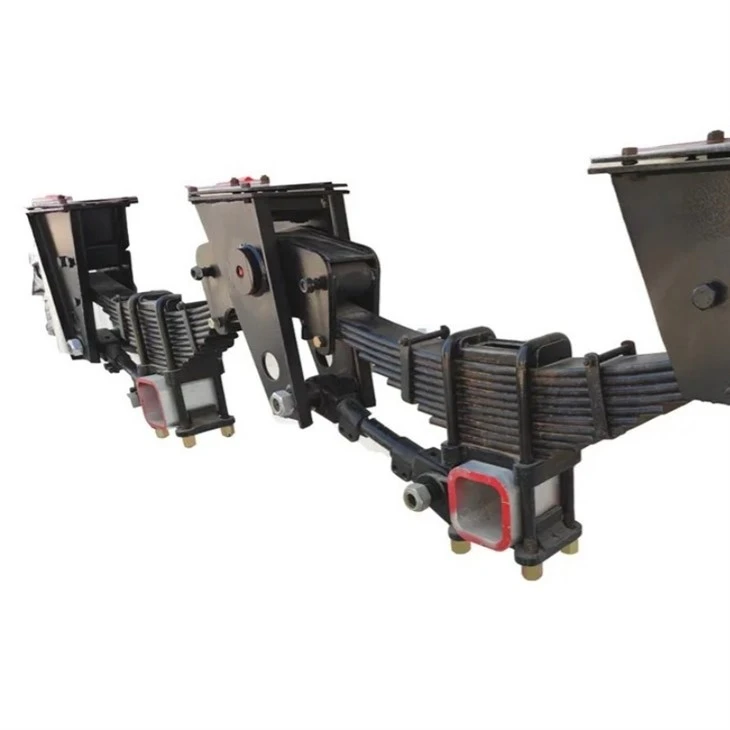

Semi Trailer Suspension
Note: Balance arm pin 50mm or 60mm can be chosen. The thickness of hanger can be 6mm,8mm,10mm Spring specification: Width 90mm,100mm,120mm; the quantity of leaves is optional Can be equipped with 13/16/20T axles. Can choose front/reverse installation. Can be equipped with round shaft/square...
Features
The Semi Trailer Suspension refers to a suspension system mounted on a semi-trailer to connect the wheels to the frame, and to absorb and attenuate the vibration and shock of the vehicle through elastic elements and damping elements.
Parameter Specification Table
| Suspension types | German series suspensions, American series suspensions, bogie/boogie suspension series, air suspension series, rigid suspension series, YORK suspensions, ROR suspensions, HENRED suspensions, semi-trailer suspensions, trailer suspensions and agricultural series, etc. |
| Quantity of installed axles including | 1-axle suspensions, 2-axle suspensions, 3-axle suspensions, 4-axle suspensions, etc. |
| Position of installed axles including | Overslung & underslung suspensions |
| Type of installed axle beams including | Square & round axle beam suspensions |
| Hanger thickness | 6 mm, 8 mm, 10 mm |
| Equalizer thickness | 8 mm, 10 mm, 12 mm |
| Equalizer pin diameter | 50 mm, 60 mm, 70 mm |
| Axis (torque arm pin) diameter | 28 mm, 36 mm |
| Arm bushes | Natural rubber, composite bushings, urethane rubber, used rubber, etc. |
| Leaf springs | 90x16x7 leaves, 90x16x9 leaves, 100x16x10 leaves, 100x12x12 leaves, 100x12x14 leaves, 100x14x12 leaves, 75x13x8 leaves, 75x13x9 leaves, 75x14x8 leaves, 75x14x9 leaves, etc. |
| Colors | Red, black, grey, blue, etc. |
| Optional parts/components | Front hangers, rear hangers, center hangers, equalizers, equalizer pins, equalizer bushes, brackets, axle seats, axises, bushes, leaf springs, U-bolts, bolts, fixed arms, adjustable arms, hanger spacers, reinforcing plates, reinforcing brackets for equalizers, etc. |
| Package | * 30 sets~35 sets of suspensions with leaf springs in one 20 ft container; * 60 sets~70 sets of suspensions without leaf spring in one 20 ft container; * Mixed load with other trailer parts. |
| Standards implemented | IATF 16949-2016, ISO 9001-2015. |
| Payment | TT, LC, DP. |
| Lead time | About 10~15 working days |
| MOQ | 1 set |
Note
Balance arm pin 50mm or 60mm can be chosen.
The thickness of hanger can be 6mm,8mm,10mm.
Spring specification: Width 90mm,100mm,120mm; the quantity of leaves is optional.
Can be equipped with 13/16/20T axles.
Can choose front/reverse installation.
Can be equipped with round shaft/square shaft.
FAQ
Q1: How do you guarantee quality?
A1: We take quality inspect records from raw material to finished product.
The former department bear 100% responsibility for next process.
Q2: What is your MOQ?
A2: For common material size, MOQ requires 3-5 pcs;
For special material size, Moq requires 3 ton or more;
Q3: What is your terms of payment?
A3: T/T, L/C, Western Union,
Q4: How do customers evaluate Xiaocheng?
A4: I must say that you have solved this problem very well.
It is always best to be open and solve these kind of problems in best possible way for both of us.
