Diaphragm

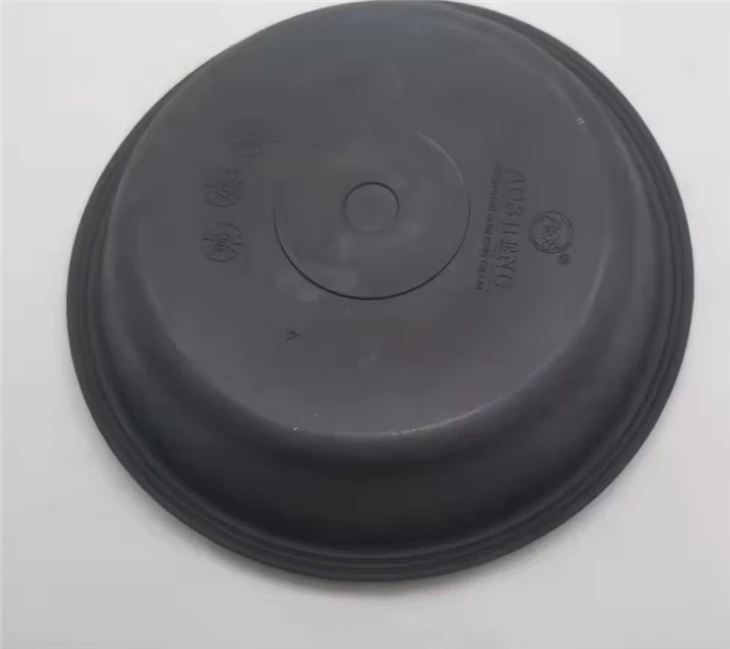

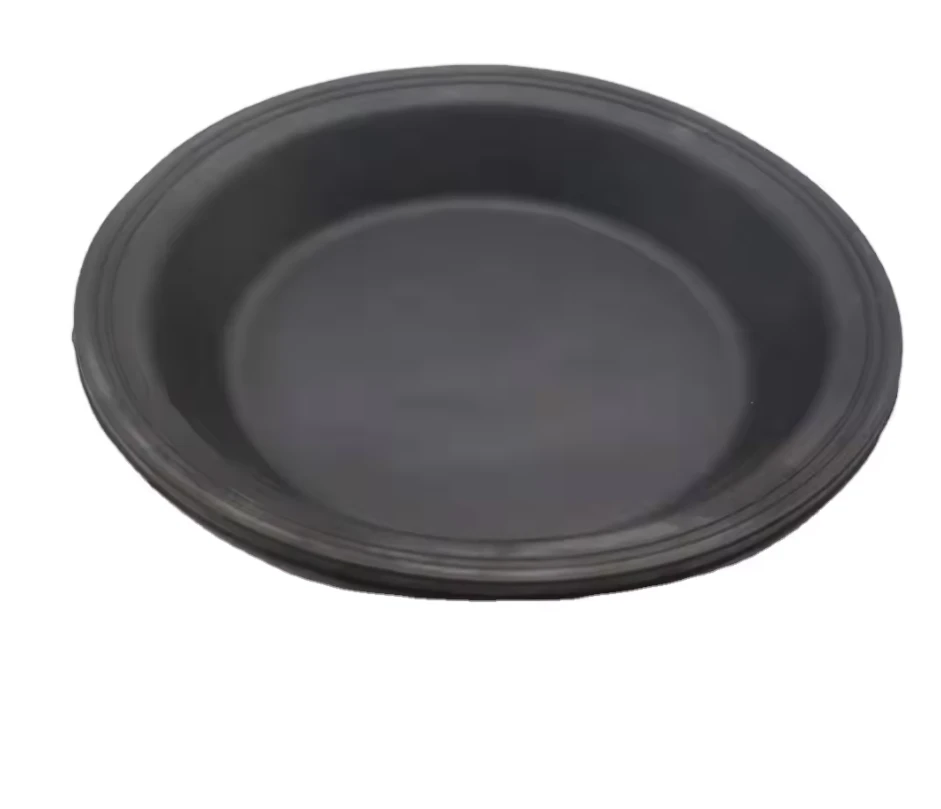

The diaphragm of the brake air chamber is a key component in the air brake system, mainly used to convert air pressure into mechanical force to drive the brake CAM or push rod to achieve braking
Features
Products Description
The diaphragm of the brake air chamber is a key component in the air brake system, mainly used to convert air pressure into mechanical force to drive the brake CAM or push rod to achieve braking.
|
DESCRIPTION
|
|
|
Type
|
Brake Chamber Parts
|
|
Material
|
Rubber
|
|
MOQ
|
300pcs
|
|
Production Capacity
|
100000 PCS/Month
|
|
Certification
|
ISO
|
|
Color
|
black,etc
|
|
Packaging
|
PP Bag, Small Box, Carton Box, Pallet
|
|
DEAL INFORMATION
|
|
|
Payment term
|
TT,as for other payments, we can talk
|
|
Delivery port
|
Tianjin/Ningbo/ Shanghai/ Yiwu/ Shenzhen....
|
|
Delivery Time
|
3-5 days with stock and 25-35 day for Customized
|
|
MOQ
|
Accept small order, accept mix order
|
|
Packaging Standard
|
Export standard packaging , Neutral white or yellow box, Brand box are available.
|
Products Function
Power conversion
The pressure of compressed air is transformed into mechanical motion to push the brake push rod or CAM, causing the brake pads to come into contact with the brake drum and generate braking force.
Sealing function
Ensure that the internal pressure of the air chamber does not leak and maintain the pressure required for braking.
Response speed
It can quickly respond to changes in air pressure, directly affecting braking sensitivity and vehicle safety.
Structure
It is usually a circular or butterfly-shaped film structure, with the edge fixed between the air chamber shell and the cover plate.
The central part is connected to the push rod or piston. Under pressure, it expands outward to push the push rod.
Materials
Rubber: Commonly used are nitrile rubber (NBR) or fluorine rubber (FKM), which are oil-resistant and heat-resistant (-40℃ to 120℃).
Reinforcing layer: Some diaphragms are added with a nylon or polyester fiber layer to enhance tear resistance and durability.
Type
Spring brake air chamber diaphragm: Used in composite air chambers, it has the functions of both service braking and parking braking.
Diaphragm type brake air chamber diaphragm: Simple structure, often used in light vehicles.
Piston brake chamber diaphragm: Used in heavy vehicles, it is resistant to high pressure and has a longer service life.
Installation location
It is located in the brake air chamber, between the air chamber shell and the cover plate, and is fastened and sealed by bolts.
Typical application vehicle models: pneumatic braking systems for trucks, buses, trailers, etc.
Common Faults and Causes
Cracking or aging
Reasons: Rubber aging, high-temperature oxidation, grease corrosion or frequent high-pressure impact.
Symptoms: Weak braking, air pressure leakage (a leakage sound can be heard).
Deformation or delamination
Reason: Material defect or long-term overloading operation.
Seal failure
Reason: Improper installation or edge wear.
Replacement and maintenance
Replacement steps:
Release the pressure in the air chamber and disassemble the shell of the air chamber.
Remove the old diaphragm and clean the inner part of the air chamber.
Install the new diaphragm and ensure that the edges are aligned without wrinkles.
Tighten the bolts and test the air tightness.
Maintenance suggestions:
Regularly check whether the pneumatic system is leaking.
Avoid contact with corrosive substances such as engine oil and diesel.
Replacement cycle: It is recommended to replace every 2 to 3 years or 100,000 kilometers (depending on the working conditions).
why choose us
Keep novation
We has consistently invested in the people andequipment necessary to yield new productdevelopment results. Wehave own independent R&D Dept
Long history in the market
More than 20 years experiences in OEM supplier. Ourcustomer like : DONGFENG,FUWA, BPW, HOWO,BENZ....
The perfect qualityinspection managersystem
The perfect quality inspection manager system thatensure quality under control from incoming material tofinish product first like article inspection and routineinspection, worker Self inspection request,100%inspection of finished products before shipment...
Adopt advanced management office software
Adopt advanced management office softwaremanufacturing execution systems (MES) that arecomputerized systems used in manufacturing to trackand document from purchasing of raw materials tofinished goods. Which Benefits reduced waste,Decreases
downtime and easy fault finding.
FAQ
Q1: What is your terms of payment?
Q2: What is your terms of delivery?
Q3: How about your delivery time?
Q4: Can you produce according to the samples?
Q5: What is your sample policy?
Q6: How do you make our business long-term and good relationship?
